Description

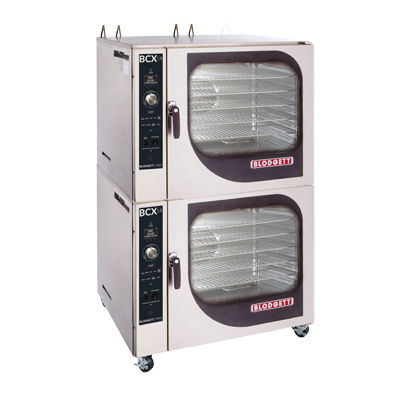

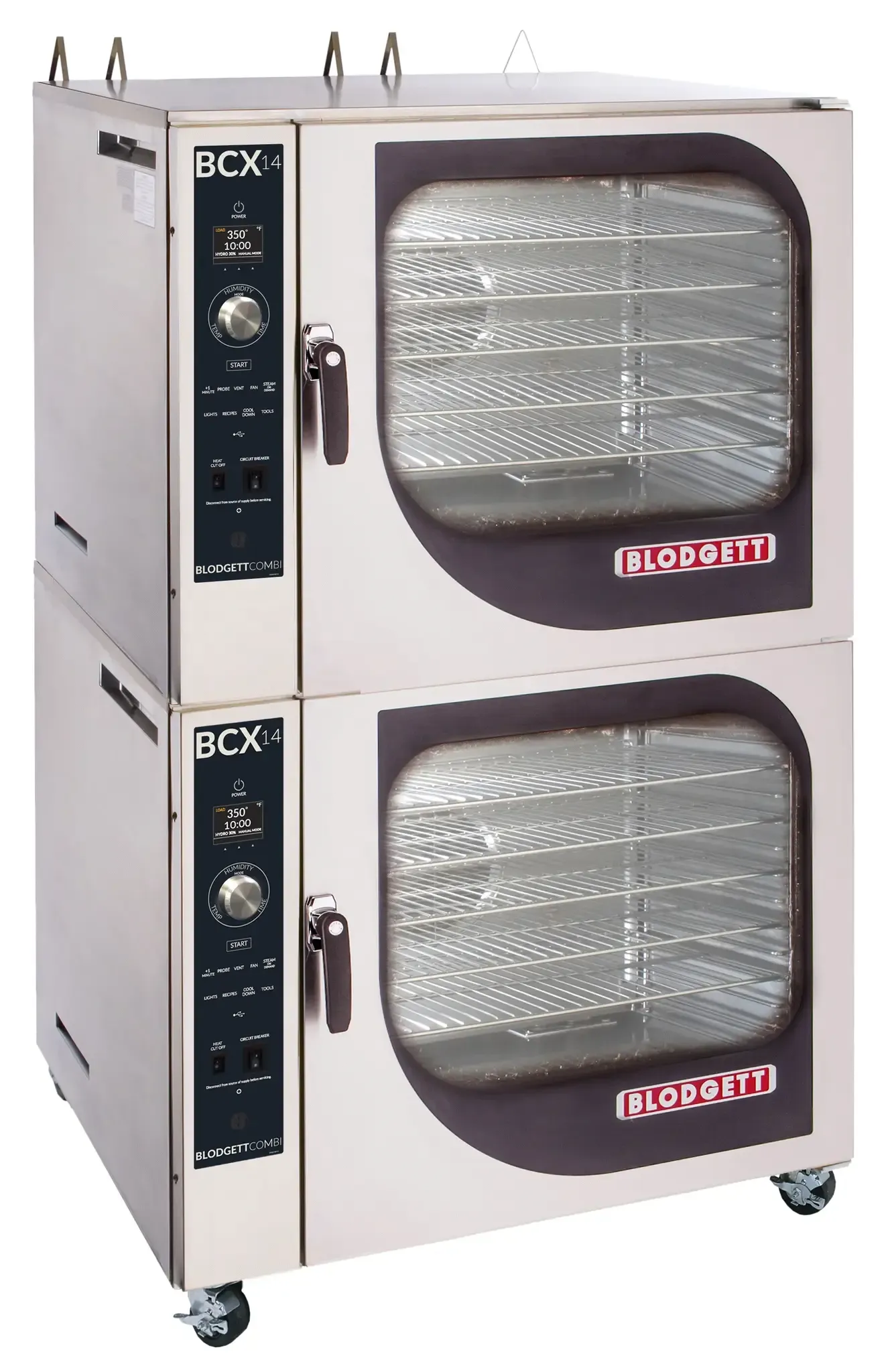

The BCX Series provide combi cooking versatility with rugged Blodgett durability you can rely on! Blodgett Heavy Duty Combi ovens feature a fully welded stainless steel frame for extra strength. This frame is specifically designed to prevent warping which causes door seals to leak. The Blodgett® Heavy Duty Combi ovens are made to withstand the rigors of any kitchen including institutional. BCX-14EADDL is an additional section to be ordered for stacking with an existing BCX-14E and includes 4” casters and stacking hardware.

Specifications

Capacity	(14) 12" x 20" full size hotel pan capacity, (7) 18" x 26" full size sheet pan capacity
Gas Inlet Size	0.75 Inch
Horsepower	1/2 hp
Number of Shelves	10 shelves
Voltage	115V
Amps	12.0 Ampere
Wattage	1380.0 Watt
Number of Racks	14
Minimum Temperature	150.0 Fahrenheit
Number of Cooking Chambers	2
Drain Outlet Size	2.0 Inch
Cooking Chamber Depth	23.37 Inch
BTU	230000 BTU
Phase	3PH
Water Inlet Pressure	40.0 Pound per square inch, 50.0 Pound per square inch
Area (in)	40.19 Inch X 45.13 Inch X 73.22 Inch
Width	40.19"
Depth	45.13"
Cooking Chamber Height	49.0 Inch
Maximum Temperature	500.0 Fahrenheit
Height	73.22"
Steam Type	boiler
Design	Boiler Based, Freestanding, Indoor Only, open kitchen enabled
Safety and Compliance	cETLus, NSF
Product Type	combi steamer
Size	Full-Size
Power Type	gas
Material	glass
Door Type	glass door
Durability and Resistance	Heavy-Duty
Features	includes timed steam injection, Made in USA, with instant steam on demand
Drain Type	Individual Drains
Cooling	Manual & Automatic Cooling
Speeds	multiple speed
Gas Type	Natural Gas
Plug Type	NEMA 5-20
Control Type	Programmable
Door Hinge Type	Right Hand Hinge
Water Connection Source Type	Sink Tap
Interior Material	Stainless Steel
